Description

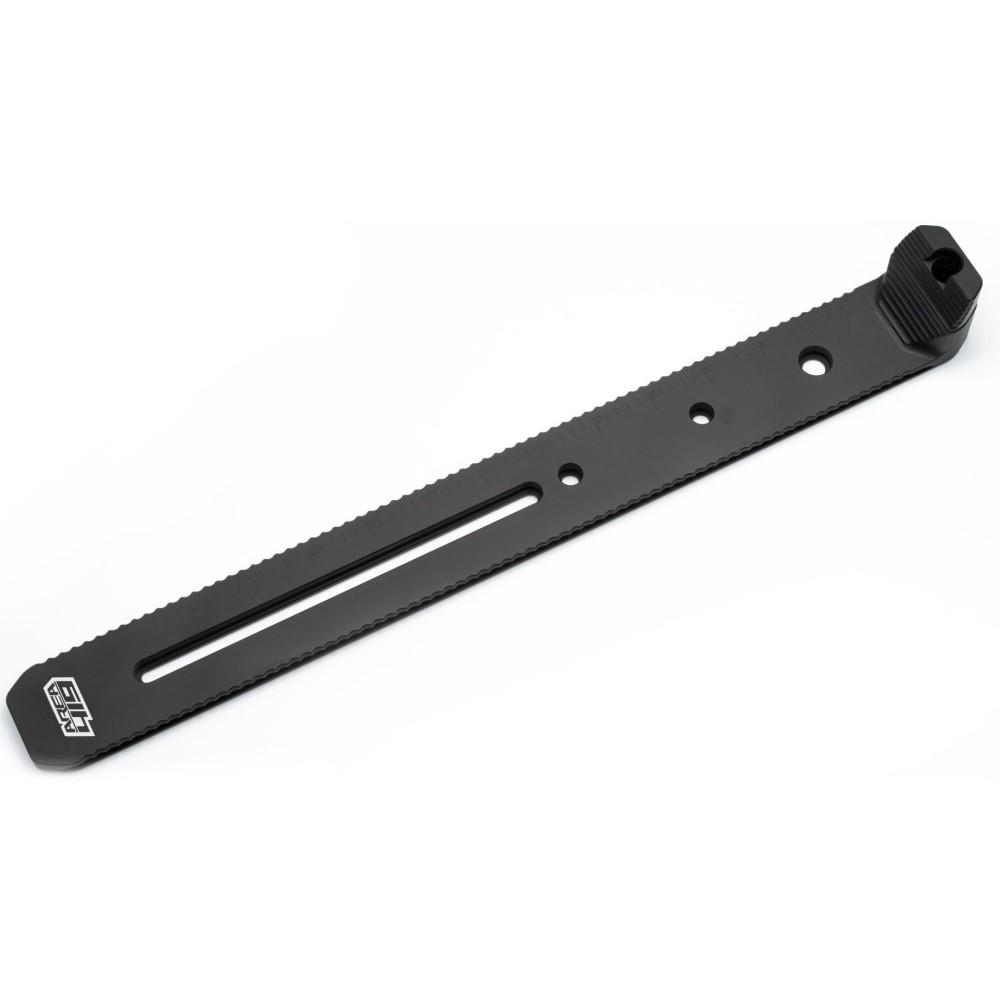

Engineered for precision, the Area 419 ARCALOCK 14'' Universal Dovetail Rail enhances your rifle's mounting capabilities. This rail system features a unique locking mechanism that secures your accessories firmly in place, eliminating any unwanted movement during use. With 65 locking positions available, it accommodates a wide variety of setups, allowing for optimal customization based on your shooting needs. The rail's serrated sides interface seamlessly with the proprietary clamp, providing a robust connection that withstands significant pressure, making it ideal for tactical shooting environments.
Constructed from durable 6061-T6 aluminum and finished with Type 3 hard coat anodization, this rail is built to endure harsh conditions while remaining lightweight at just 5.6 oz. The ergonomic design ensures easy installation and compatibility with multiple rifle configurations, including Manners Composite Stocks. With a focus on enhanced stability and performance, the ARCALOCK rail is a reliable choice for competitive shooters and enthusiasts alike.
Features – Key Benefits Bullets
- MECHANICAL LOCKING SYSTEM for secure accessory attachment that prevents movement under pressure.
- 65 LOCKING POSITIONS allow for versatile mounting options to suit various shooting styles.
- SERRATED RAIL SIDES enhance stability and grip without damaging gear or skin.
- WEIGHT-EFFICIENT design at 5.6 oz ensures minimal impact on overall rifle weight.
- TYPE 3 HARD COAT ANODIZED finish offers superior durability against wear and weather.
- COMPATIBLE with standard Arca accessories for seamless integration into existing setups.
- ERGONOMIC DESIGN simplifies installation across various rifle configurations.
- EXTENDED LENGTH accommodates additional accessories while maintaining structural integrity.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Length | 14 inches |
| Weight | 5.6 oz (156.03 grams) |
| Material | 6061-T6 Aluminum |
| Finish | Type 3 Hard Coat Anodized |
| Locking Positions | 65 |
| Compatibility | Standard Arca accessories, Manners Composite Stocks |
What's in the Box?
- 1 x ARCALOCK 14'' Universal Dovetail Rail
- 1 x Extended Length Action Screw
- 1 x Tee-nuts and installation hardware
Customer Reviews
"The locking system is a game changer. No more sliding barricade stops!"
"Installation was straightforward, and the rail feels incredibly sturdy on my rifle."
"Perfect for my Manners stock; I love the versatility and lightweight design."
FAQ
How does the locking mechanism work? The ARCALOCK system uses serrated rail sides that engage with a proprietary clamp, providing a mechanical lock that holds your accessories firmly in place, even under significant pressure.
Is this rail compatible with all rifles? It is designed to fit a range of rifle configurations, particularly those with an accessible front action screw. While it is backward compatible with standard Arca accessories, optimal locking requires the Area 419 clamp.
What tools are needed for installation? Basic tools are required, including a drill press and a 3/4" paddle bit for tee-nuts installation, depending on your rifle's current configuration. The package includes necessary hardware for a straightforward setup.
How does this rail compare to others? Compared to traditional Arca rails, the ARCALOCK offers enhanced stability with its locking features, making it more reliable in high-pressure situations, particularly for competitive shooting.
Can I adjust the position of accessories after mounting? Yes, the 65 locking positions allow you to adjust the placement of your accessories easily, ensuring you can find the optimal setup for your shooting style.
Similar Models
Explore more from Area 419 to enhance your shooting experience. Consider the versatile Area 419 ARCA Rail System for a compact option or the Area 419 Dovetail Accessory Clamp for additional mounting solutions. Check out our full collection for precision-engineered rifle accessories tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
