Description

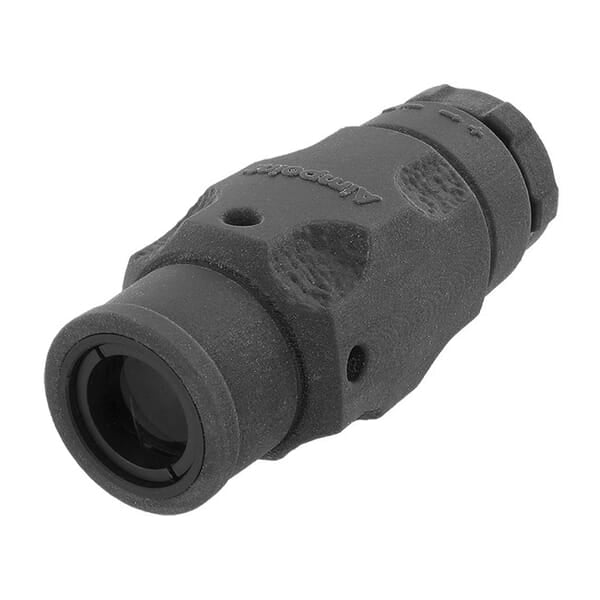

Aimpoint 3X Mag-1 Magnifier enhances the performance of Aimpoint red dot sights by providing 3x optical magnification. This device is designed for precise target acquisition over longer distances, making it suitable for military, law enforcement, competitive shooting, and hunting applications. With a clear 2 MOA dot and intuitive windage and elevation adjustments, users can quickly center the dot for accurate aiming.
Built for durability, the Aimpoint 3X Mag-1 is fully shockproof and submersible up to 80 feet, ensuring reliability in harsh conditions. It operates effectively in a wide temperature range from -49°F to +160°F. The ergonomic design, featuring a protective rubber cover, allows for comfortable handheld use, while the variable dioptric adjustment ensures compatibility with individual eyesight needs.
Features – Key Benefits Bullets
- OPTICAL PERFORMANCE: 3x magnification and 7-degree field of view for enhanced target identification and engagement at extended ranges.
- COMPATIBILITY: Optimized for use with Aimpoint red dot sights, including Micro T-2/H-2, Patrol Rifle Optic, CompM4, and CompM5 series.
- DURABILITY: Fully shockproof and submersible up to 80 feet, with an operating temperature range from -49°F to +160°F.
- VERSATILITY: Can be used as a standalone handheld 3x monocular or paired with Aimpoint sights for added functionality.
- ERGONOMIC DESIGN: Protective rubber cover provides a secure grip for easy handheld use.
- ADJUSTABILITY: Variable (-3 to +3) dioptric setting allows for individual eye adaptation for optimal clarity.
- EASE OF USE: No re-zeroing needed when switching between magnified and non-magnified aiming, simplifying the user experience.
- MOUNTING OPTIONS: Compatible with Aimpoint TwistMount and FlipMount (sold separately) for flexible installation options.
Technical Specifications
| Specification | Detail |
|---|---|
| Magnification | 3x |
| Field of View | 7 degrees |
| Eye Relief | 2.8 in (70 mm) |
| Dioptric Adjustment | -3 to +3 |
| Submersible Depth | 80 feet (25 meters) |
| Temperature Range | -49°F to +160°F (-45°C to +71°C) |
| Weight | 8.1 oz (230 g) |
| Dimensions | 4 9/16" x 1 13/16" x 1 11/16" |
| Tube Diameter | 30 mm |
| Length | 113 mm |
| Width | 56 mm |
| Height | 69 mm |
| Color | Black |
| Finish | Matte |
| Material | Aluminum |
What's in the Box?
- Aimpoint 3X Mag-1 Magnifier
- Protective rubber cover
- Screws and Allen key
Customer Reviews
“This magnifier makes long-range shooting much easier. The clarity is impressive.”
“I use it with my Aimpoint sight, and it has improved my accuracy significantly.”
“Built tough and performs well in all weather. Highly recommend for serious shooters!”
FAQ
Many potential buyers ask about the performance of the Aimpoint 3X Mag-1 in low-light situations. Its robust design and clear optics allow for effective target acquisition even in less-than-ideal lighting conditions, making it a reliable choice for evening hunts or tactical operations.
Maintenance concerns are common, especially regarding the durability of the device. The magnifier is shockproof and submersible, meaning it can withstand harsh environments. Regular cleaning of the lenses and using a protective cover will ensure longevity and optimal performance.
When comparing the 3X Mag-1 with other magnifiers, users often inquire about compatibility with various optics. This magnifier is designed specifically for Aimpoint sights, ensuring seamless integration and performance that aligns with other Aimpoint products, providing a significant advantage over generic alternatives.
Similar Models
Looking for additional optical solutions? Explore other Aimpoint products, including the Aimpoint Micro T-2 for compact versatility and the Aimpoint CompM5 for enhanced tactical performance. Our complete collection offers various options to suit every shooter's needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
