Description

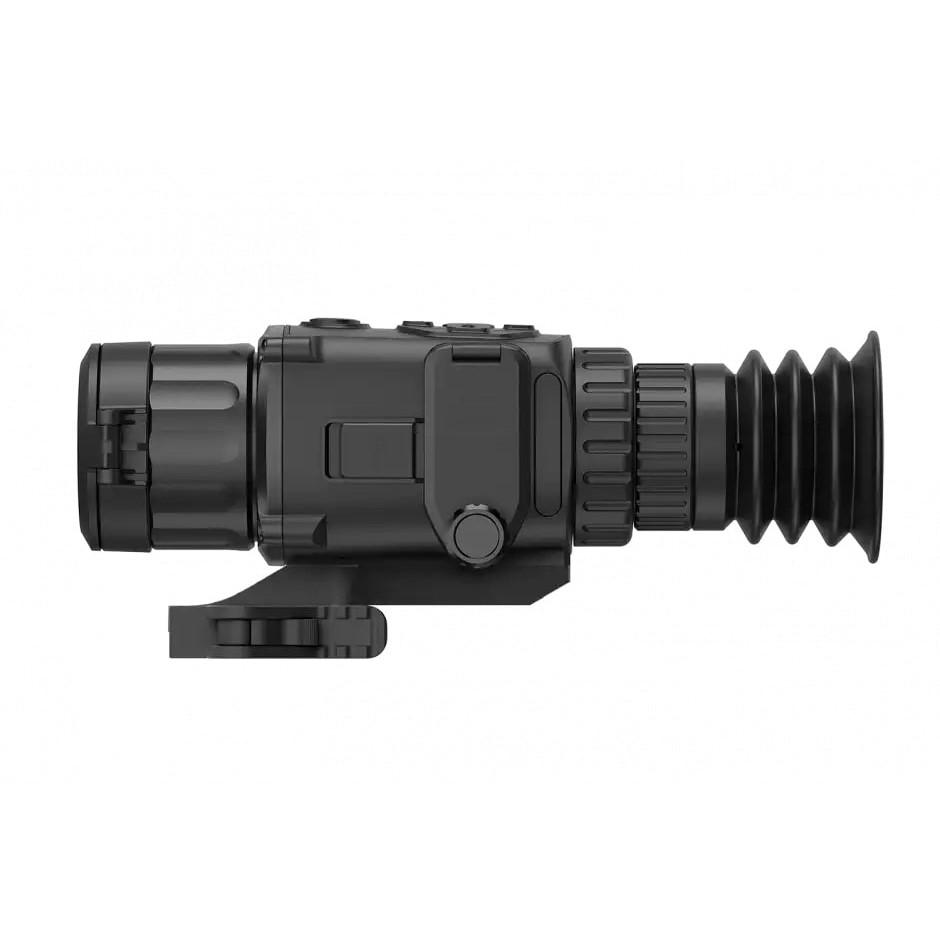

AGM Rattler TS35-640 Thermal Rifle Scope / Monocular features a 35 mm Germanium lens paired with a 640x512 resolution, delivering exceptional detail in low-light conditions, including complete darkness. This device transitions seamlessly between a thermal rifle scope and a handheld monocular, making it versatile for both hunting and surveillance. With up to 4.5 hours of runtime powered by two CR123 batteries, it also allows for external battery connections to extend usage during long outings.
Equipped with a 12μm thermal detector and a 50Hz refresh rate, AGM Rattler TS35-640 captures fast-moving subjects with ease. It includes an onboard Wi-Fi module for straightforward streaming and recording, ensuring you won’t miss crucial moments. The scope offers various reticle types and adjustable color palettes, allowing for customization based on your specific needs, empowering you to enhance your field performance.
Features – Key Benefits Bullets
- HIGH RESOLUTION ensures superb image clarity with a 640x512 thermal detector.
- FAST REFRESH RATE of 50Hz provides smooth visuals, capturing quick movements effortlessly.
- VERSATILE USAGE as both a thermal rifle scope and monocular for varied applications.
- EXTENDED POWER option with external USB battery for longer operational time.
- OPTICAL MAGNIFICATION of 2x with digital zoom capabilities (1x, 2x, 4x, 8x) for flexible viewing.
- USER-FRIENDLY INTERFACE featuring Wi-Fi for live streaming and video recording.
- ROBUST DESIGN that is waterproof and shockproof, built to withstand the elements.
- 5-YEAR WARRANTY offers peace of mind, ensuring durability and reliability.
Technical Specifications Table
| Magnification | 2x (1x, 2x, 4x, 8x Digital Zoom) |
|---|---|
| Lens Diameter | 35 mm |
| Detector Resolution | 640x512 |
| Refresh Rate | 50 Hz |
| Display Resolution | 1024x768 OLED |
| Battery Life | Up to 4.5 hours (CR123 x2) |
| Weight | Lightweight design for ease of use |
| Waterproof/Shockproof | Yes |
What’s in the Box?
- AGM Rattler TS35-640 Thermal Rifle Scope / Monocular
- Lens covers
- Padded carrying case
- USB charging cable
- User manual
Customer Reviews
“The clarity of this thermal scope is amazing! It performs flawlessly in the dark.”
“Easy to use and the Wi-Fi feature is a game-changer for sharing my hunts.”
“Highly recommend this for anyone serious about hunting at night!”
FAQ
What makes the AGM Rattler TS35-640 better than other thermal scopes? The AGM Rattler stands out with its high-resolution thermal detection, fast refresh rate, and multiple power options, which provide unmatched performance in various conditions.
How do I maintain the AGM Rattler TS35-640? Regularly clean the lens with a soft cloth, ensure the ports are free of debris, and store it in a protective case to extend its lifespan.
Can I use it for hunting in different weather conditions? Yes! The AGM Rattler is designed to perform under various conditions, including rain, fog, and snow, making it ideal for hunters.
Similar Models
Looking for more options? Explore our extensive AGM lineup, including the AGM Rattler TS19-640 for a compact design and the AGM Asp-Micro TM160 for enhanced portability. Discover our full collection for thermal optics perfectly suited to every adventure.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
