Description

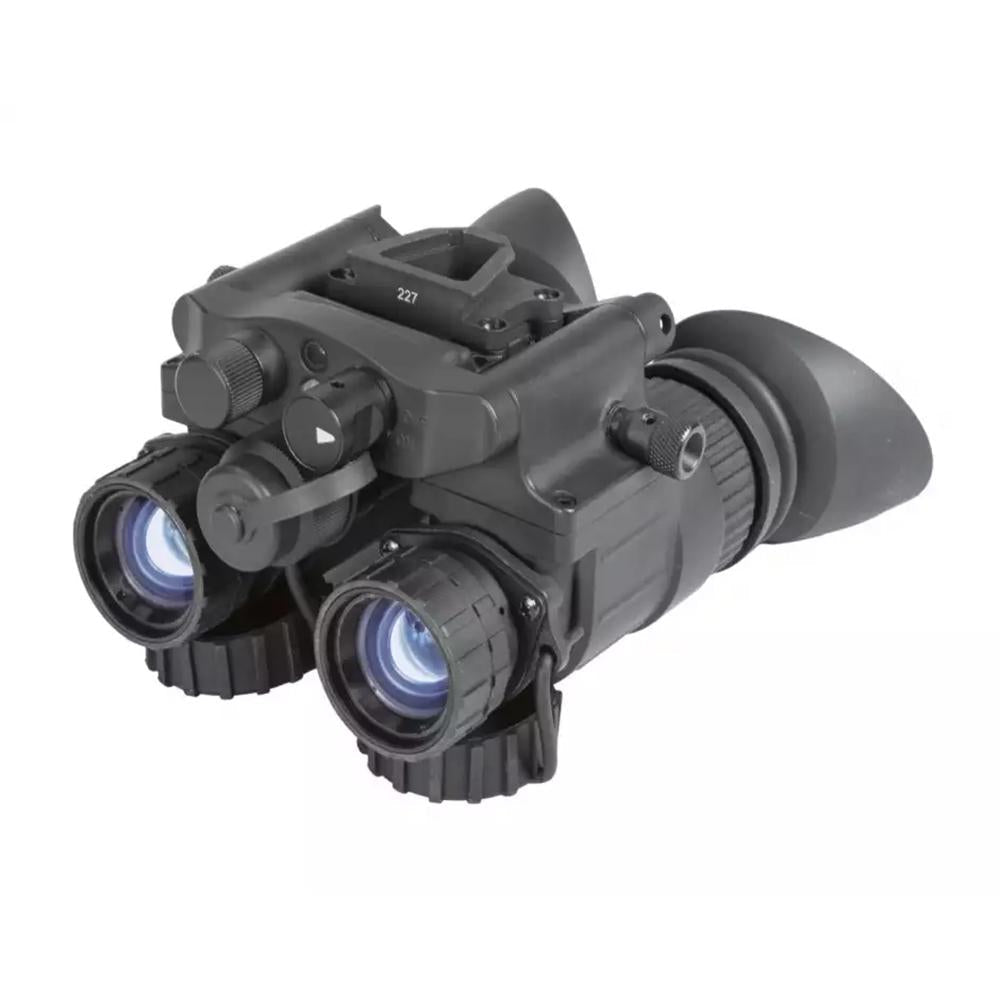

AGM NVG-40 3APW Dual Tube Night Vision Goggles deliver effective performance in low-light situations. Equipped with advanced multi-coated optics, these goggles ensure clear visibility at night, making them ideal for both tactical missions and outdoor exploration. Users can choose between Gen 2+ or Gen 3 high-performance image intensifier tubes, providing flexibility in image quality based on specific needs and environments. The goggles also feature a manual gain control, allowing for easy adjustments to image brightness based on changing light conditions.
These night vision goggles are built to last, featuring a durable aluminum housing that withstands rugged use. The bright light cut-off protects the sensitive photocathode tube, ensuring longevity. With a power source of either a single AA alkaline or CR123A battery, users can enjoy up to 20 hours of operation. An integral infrared illuminator enhances visibility in complete darkness, making the AGM NVG-40 an excellent choice for night activities.
Features – Key Benefits Bullets
- HIGH-PERFORMANCE OPTICS for unmatched clarity in low light.
- BRIGHT LIGHT CUT-OFF to protect against harsh conditions.
- LONG-LASTING BATTERY LIFE for up to 20 hours of continuous use.
- MANUAL GAIN CONTROL for customizable image brightness.
- INTEGRAL INFRARED ILLUMINATOR for visibility in complete darkness.
- DURABLE HOUSING designed to withstand rugged environments.
- VERSATILE MOUNTING OPTIONS for easy attachment to headsets and helmets.
- LIGHTWEIGHT DESIGN for comfortable, extended wear during use.
Technical Specifications Table
| Specification | Details |
|---|---|
| Magnification | 1x |
| Lens Diameter | 40mm |
| Weight | 0.8 kg |
| Dimensions | 190 x 130 x 70 mm |
| Material | Aluminum housing |
What’s in the Box?
- AGM NVG-40 3APW Night Vision Goggles
- Bayonet/Horn Interface Shoe
- Mini-Rail Interface Shoe
- User Manual
- Carrying Case
Customer Reviews
"These goggles have transformed my night activities! Totally reliable and easy to use." - John D.
"Incredible clarity and battery life! Perfect for my outdoor adventures." - Sarah K.
FAQ
How does the AGM NVG-40 perform in varying light conditions? The Manual Gain Control feature allows you to adjust the image brightness, offering optimal visibility in different lighting environments, ensuring the best performance no matter the situation.
Can I use the AGM NVG-40 for extended periods? Yes, with a lightweight design and a battery life of up to 20 hours, these goggles are perfect for prolonged use without discomfort.
How do the Gen 2+ and Gen 3 tubes differ? Gen 3 tubes provide superior image quality, enhanced sensitivity to light, and better performance in low-light conditions compared to Gen 2+ tubes, making them suitable for more demanding scenarios.
Are the AGM NVG-40 goggles suitable for professional use? Absolutely, their durability and high-quality optics make them ideal for tactical and professional applications.
What maintenance do these goggles require? Regularly clean the lenses with a soft cloth and ensure the housing is free from dirt and moisture to maintain optimal performance.
Similar Models
If you're interested in more options, check out our range of night vision products! Discover the AGM NVG-50 for enhanced features and clarity, or the AGM PVS-14 for a compact and versatile choice. Explore our full collection for exceptional night vision tailored to your needs.
Our Guarantees
FREE Fast Shipping Over $99
Enjoy complimentary expedited shipping on all orders over $99.
Secure Payments
Shop with confidence using our encrypted payment processing.
High Quality or Money Back
Not satisfied with your purchase? We'll refund your money, no questions asked.
Top-Notch Support
Our expert team is available to answer all your questions and provide assistance.
What Our Customers Say
Optics Knowledge Center
Understanding Rifle Scope Basics
Magnification
Magnification refers to how much larger an object appears through the scope compared to the naked eye. Fixed power scopes have one magnification setting, while variable power scopes offer a range (e.g., 3-9x).
Objective Lens
The objective lens is the front lens that gathers light. Larger objective lenses (measured in mm) gather more light, providing brighter images in low-light conditions but add weight and require higher mounting.
Reticle
The reticle (crosshair) is the aiming point inside the scope. Modern scopes offer various reticle designs, from simple duplex crosshairs to complex ballistic reticles with holdover points for different distances.
Adjustments
Rifle scopes have turrets for windage (horizontal) and elevation (vertical) adjustments. These are measured in MOA (minutes of angle) or MRAD (milliradians) and allow precise aiming adjustments.
Proper Scope Mounting Guide
Select the Right Rings & Base
Choose rings that match your scope's tube diameter (typically 1", 30mm, or 34mm). Select a base compatible with your rifle's receiver. For heavy-recoiling rifles, opt for stronger mounts.
Install the Base
Clean the receiver and base thoroughly. Apply a small amount of blue Loctite to the screws. Attach the base to the receiver and torque the screws to manufacturer specifications.
Attach the Rings
Attach the bottom halves of the rings to the base. Place the scope in the rings and loosely attach the top halves. Don't fully tighten yet.
Set Eye Relief & Level
Position the scope for proper eye relief (3-4 inches) in your normal shooting position. Ensure the reticle is level using a scope leveling tool. Once positioned correctly, tighten the rings evenly in a cross-pattern.
Scope Zeroing Tips
Start Close
Begin zeroing at a shorter distance (25-50 yards) to ensure you're on paper before moving to your desired zero distance (typically 100 yards).
Use a Stable Rest
Always zero your rifle from a stable shooting position using a bench rest, sandbags, or a shooting rest to eliminate as much human error as possible.
Fire Groups
Fire 3-shot groups before making adjustments. This provides a more accurate representation of where your rifle is shooting than single shots.
Make Deliberate Adjustments
Know your scope's adjustment values (typically 1/4 MOA per click). If your group is 2 inches low at 100 yards, you'll need to adjust up 8 clicks (for a 1/4 MOA scope).
Confirm Your Zero
After making adjustments, fire another group to confirm your zero. Repeat the process until your point of impact matches your point of aim.
Document Your Settings
Once zeroed, record your settings including distance, ammunition used, and environmental conditions for future reference.
Optics Maintenance & Care
Cleaning Lenses
- Start by blowing or brushing away loose particles
- Use a lens pen or microfiber cloth for fingerprints
- For stubborn dirt, use lens cleaning solution (never household cleaners)
- Clean with gentle circular motions from center outward
Protecting Your Optics
- Always use lens caps when not in use
- Store in a dry place with silica gel packets
- Avoid extreme temperature changes
- Use a quality scope cover in harsh conditions
Regular Maintenance
- Check and tighten mount screws periodically
- Inspect O-rings and seals for damage
- Verify zero after rough handling
- Clean the exterior with a damp cloth
What to Avoid
- Never use fingers to touch lenses
- Avoid paper products (tissues, paper towels) on lenses
- Don't use acetone, alcohol, or household cleaners
- Never disassemble your scope (voids warranty)
